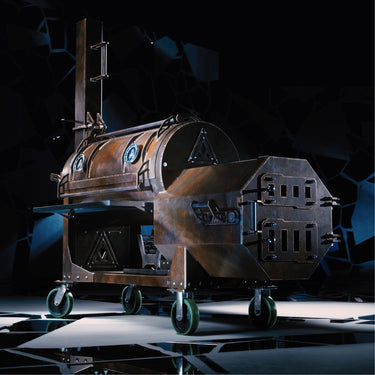

Side profile of the Fractal 90 heavy gauge steel smoker showing its industrial custom offset design

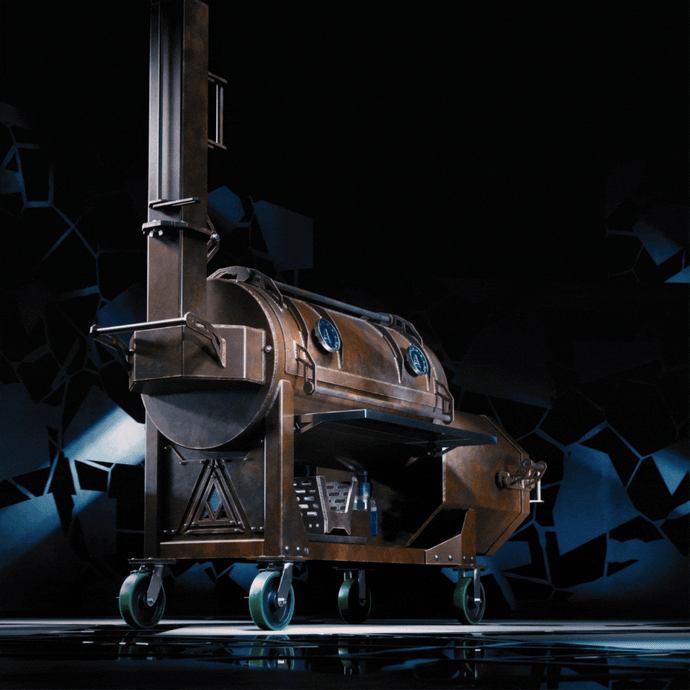

Angled side view of the Fractal 90 custom offset smoker – built for serious backyard smoking.

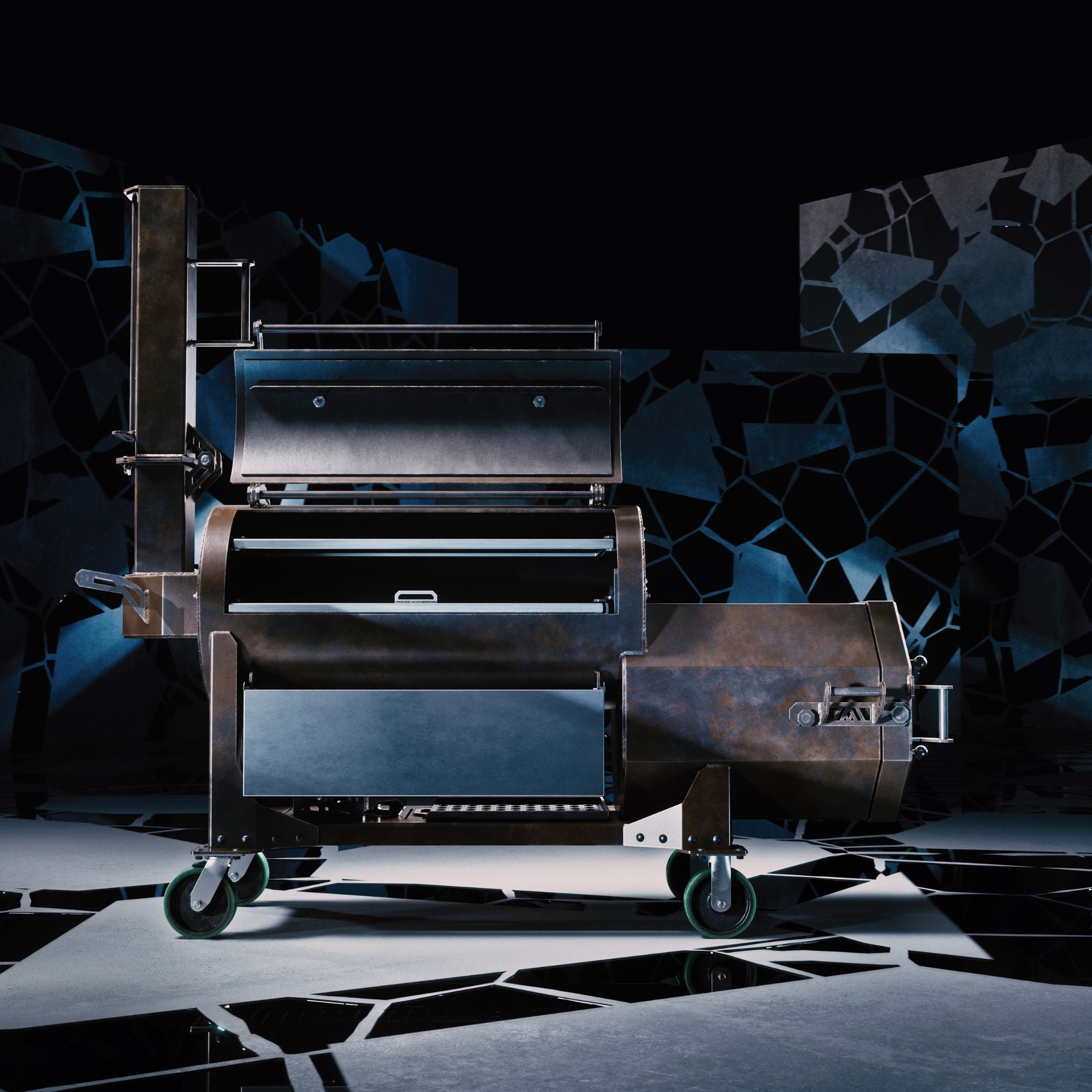

Fractal 90 offset smoker with lid open, revealing spacious cook chamber and heavy-duty grates.

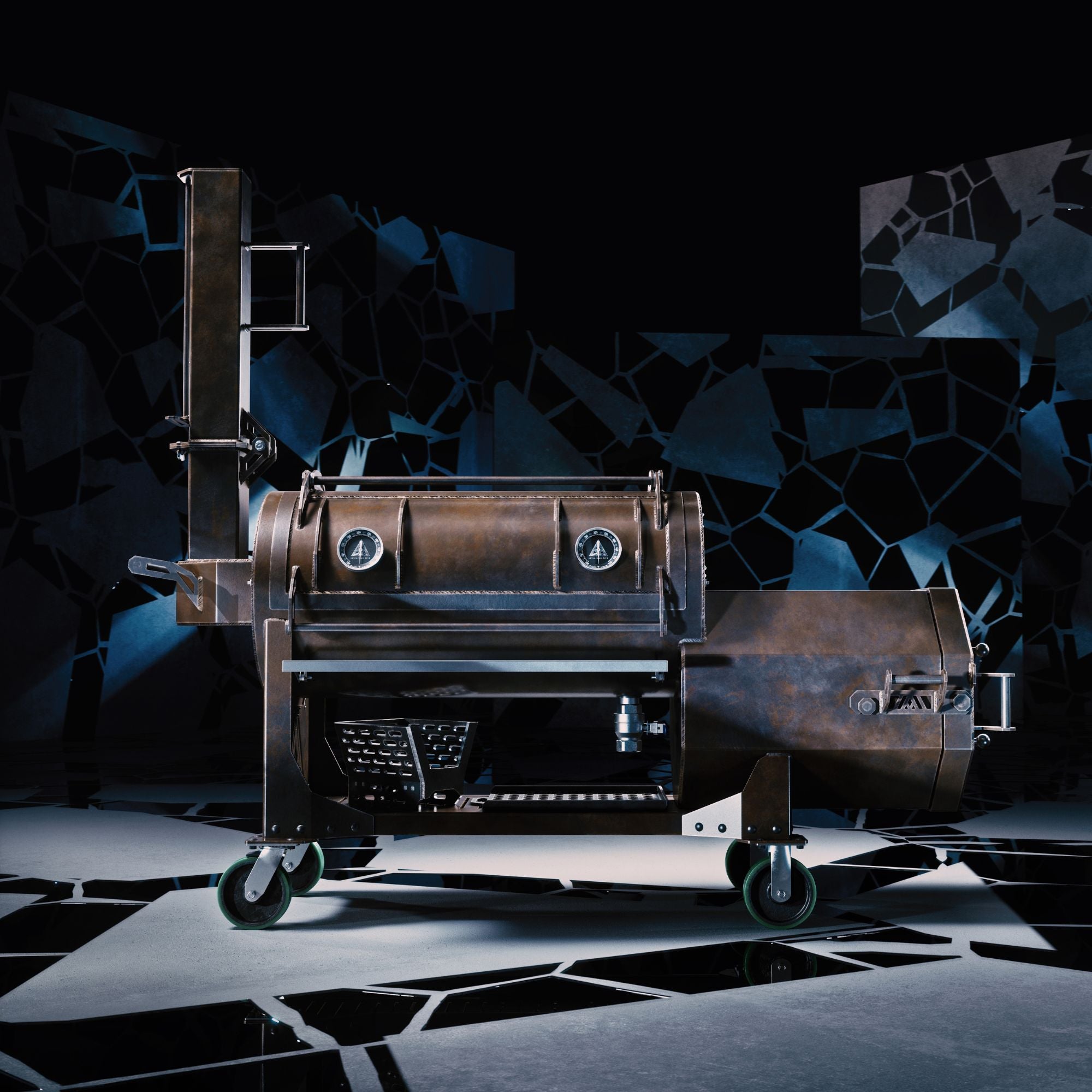

Frontal view of the Fractal 90 with lid closed and two temperature gauges– a best-in-class backyard offset smoker
Close-up of engineered airflow grates for precise heat and smoke control in this custom offset smoker.

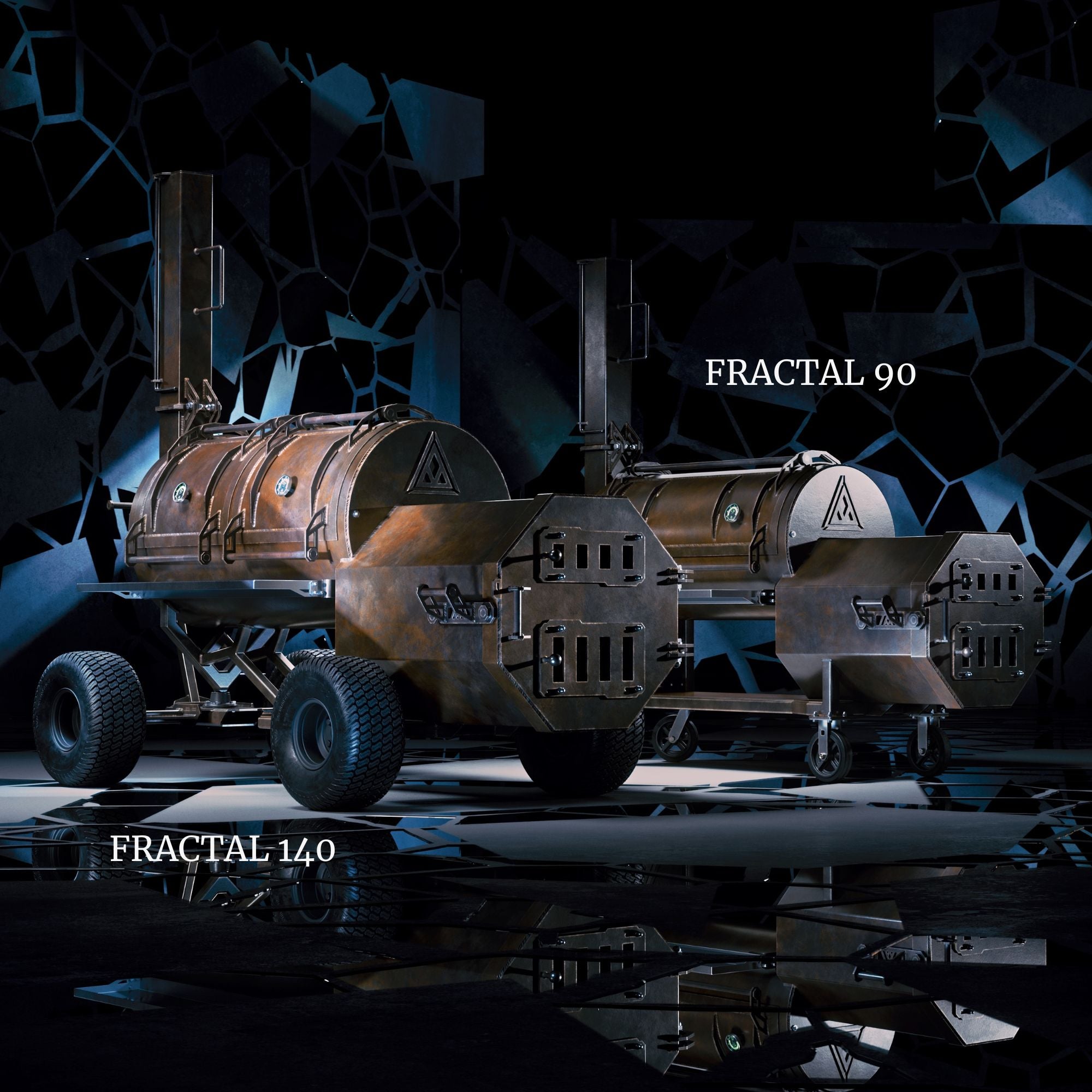

Fractal 90 and Fractal 140 custom offset smokers side by side – industrial-grade backyard smokers built like beasts.
Two integrated temperature gauges on the Fractal 90 for real-time heat monitoring and precision smoking control

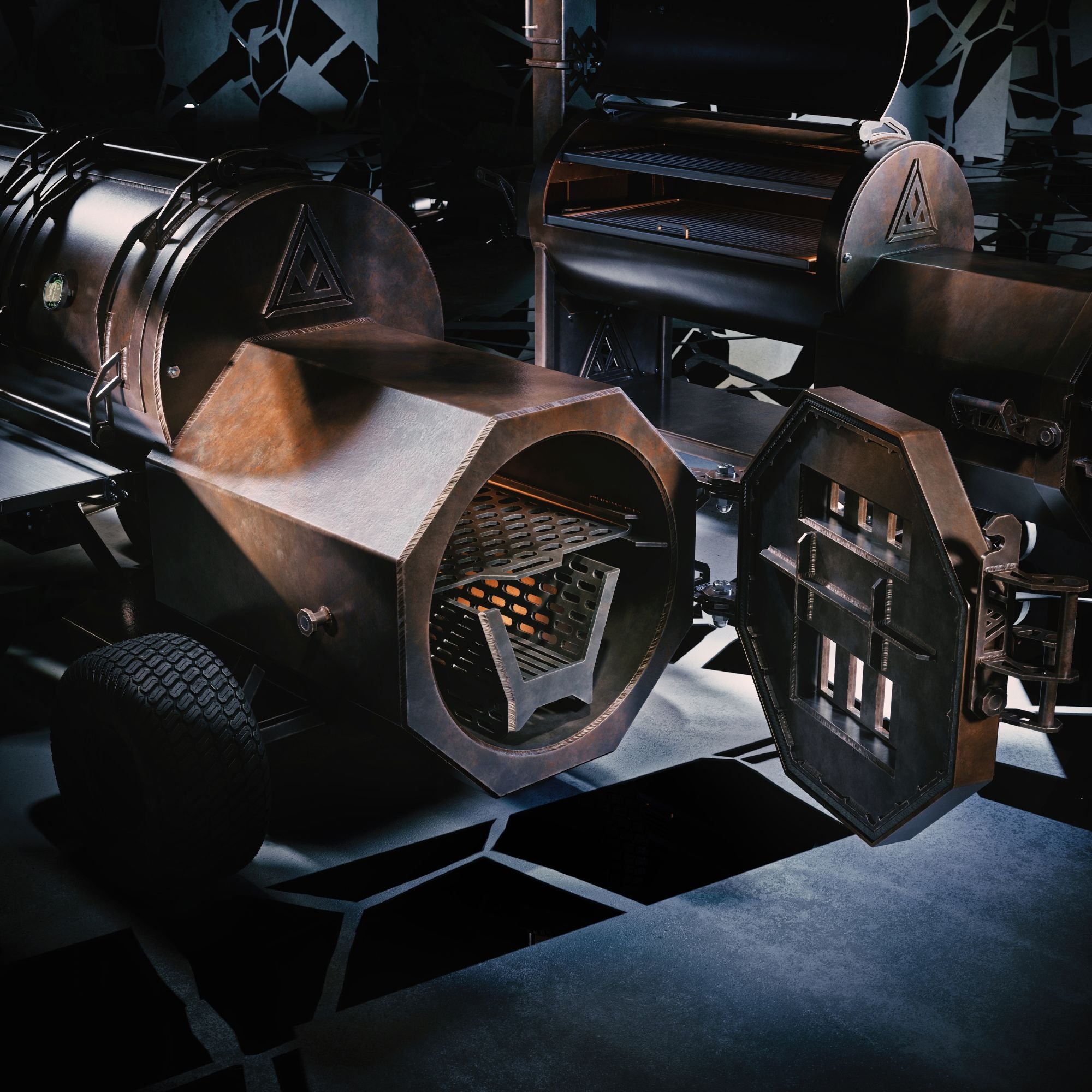

Hinged firebox door for easy access and improved heat control on this industrial offset smoker
Precision-engineered airflow system for efficient fuel use and smoke distribution in this heavy-duty smoker.
Close-up of the Fractal 90’s heavy gauge steel build and engineered design for peak performance
Steel offset smoker fire basket for superior fuel handling and airflow.

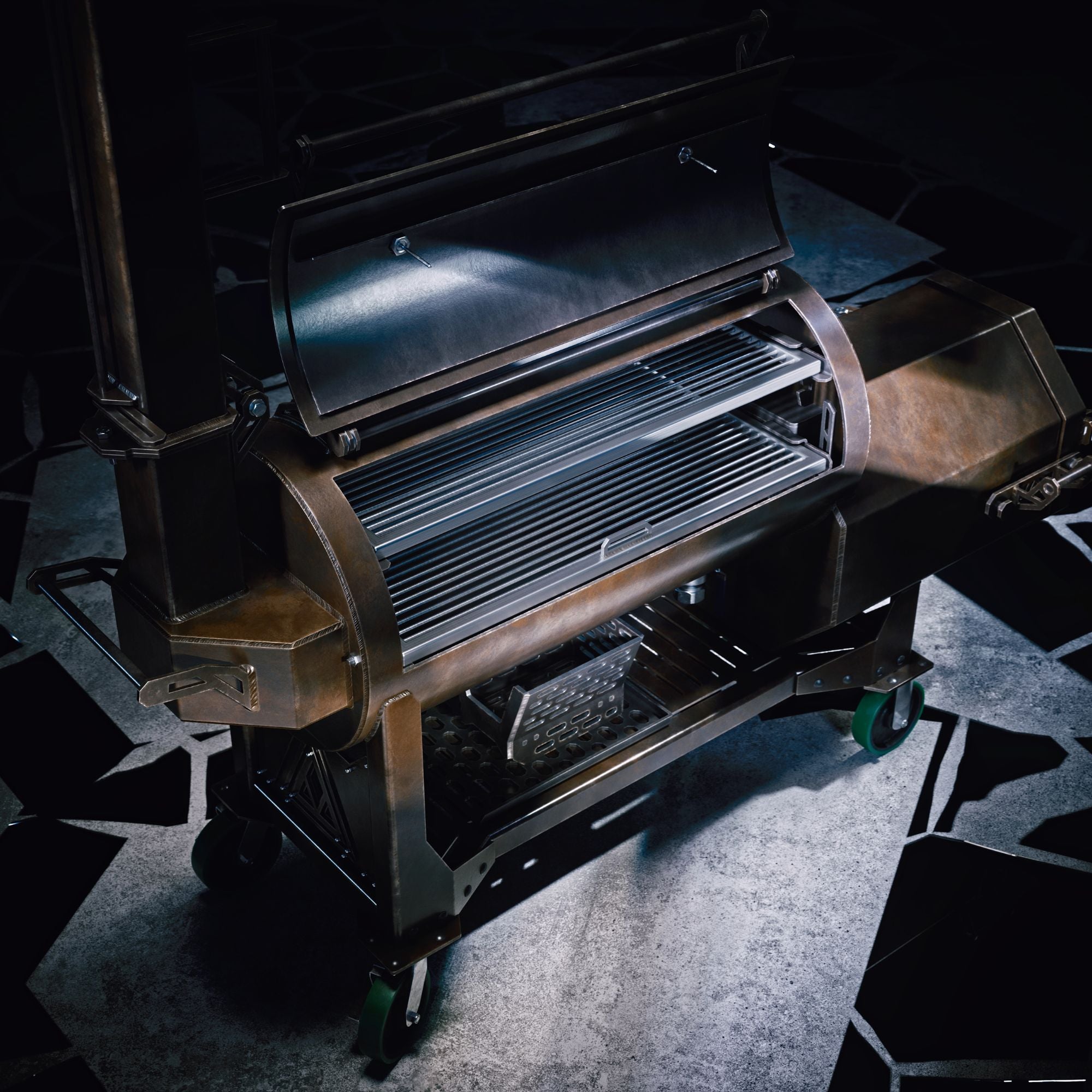

Durable cooking grates designed for high-heat cooking in the Fractal 90 backyard offset smoker
Close-up of thick steel grates built to last inside this custom offset smoker

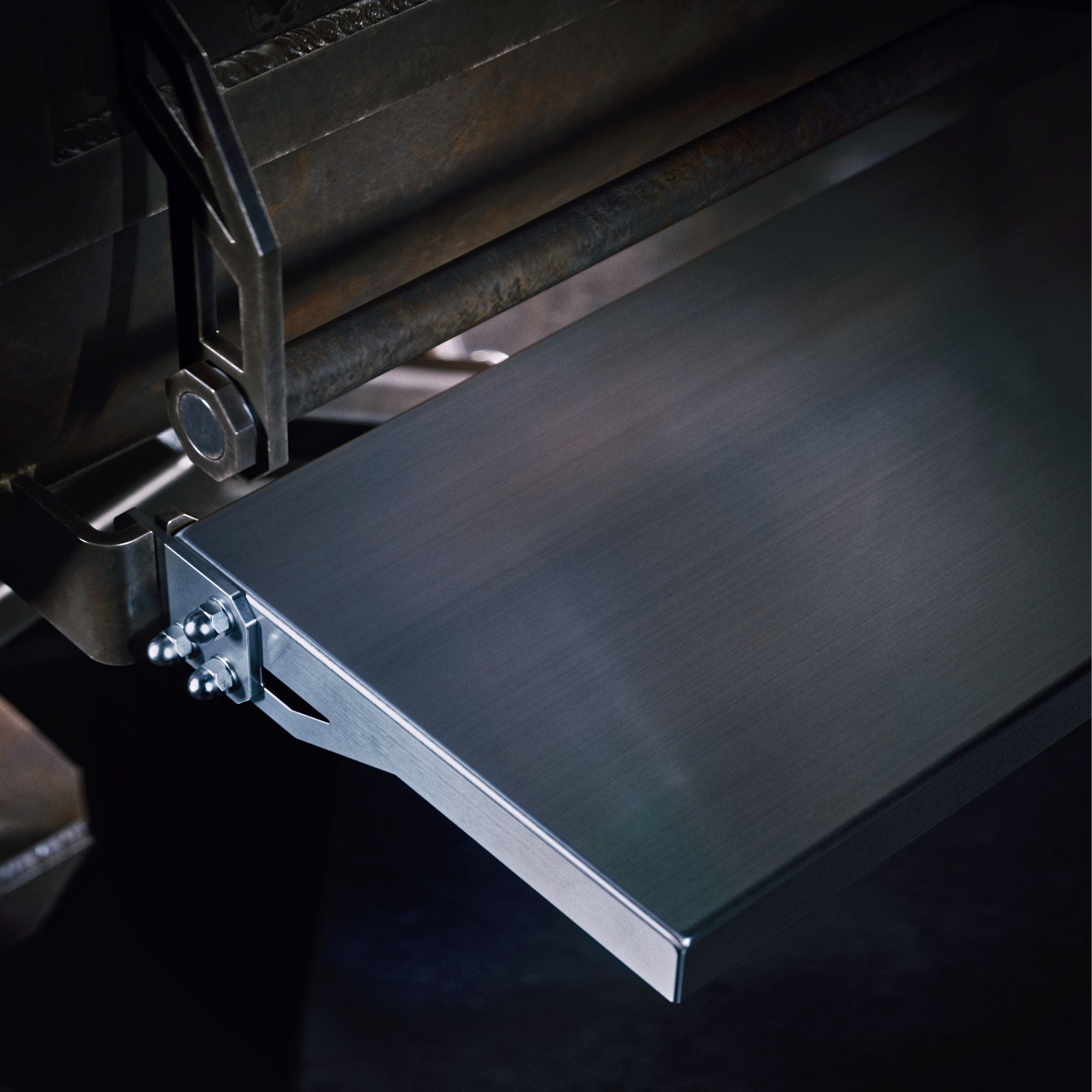

Stainless steel shelf for added workspace and prep convenience on the Fractal 90 offset smoker

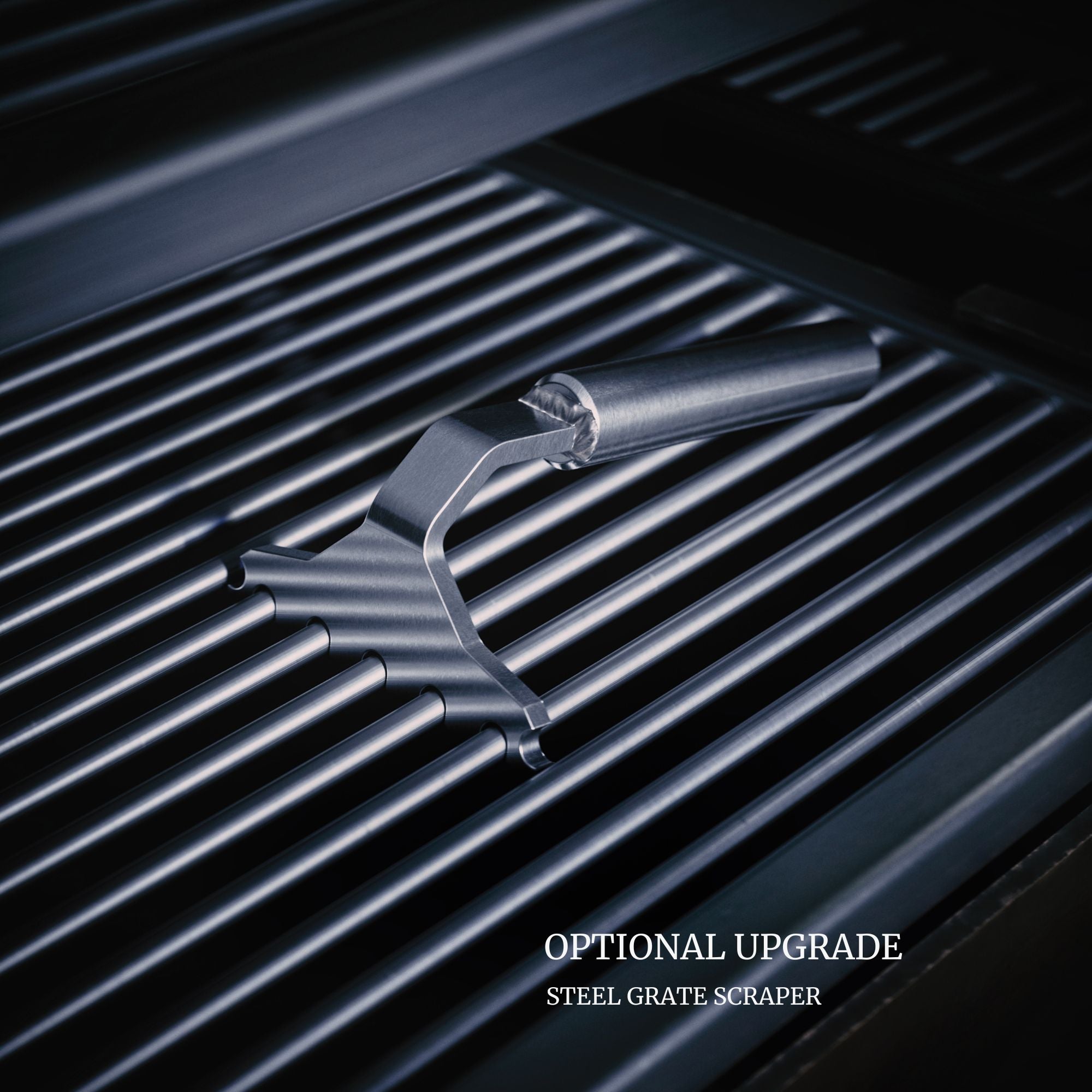

Stainless steel BBQ grate scraper upgrade for easy grate cleaning.

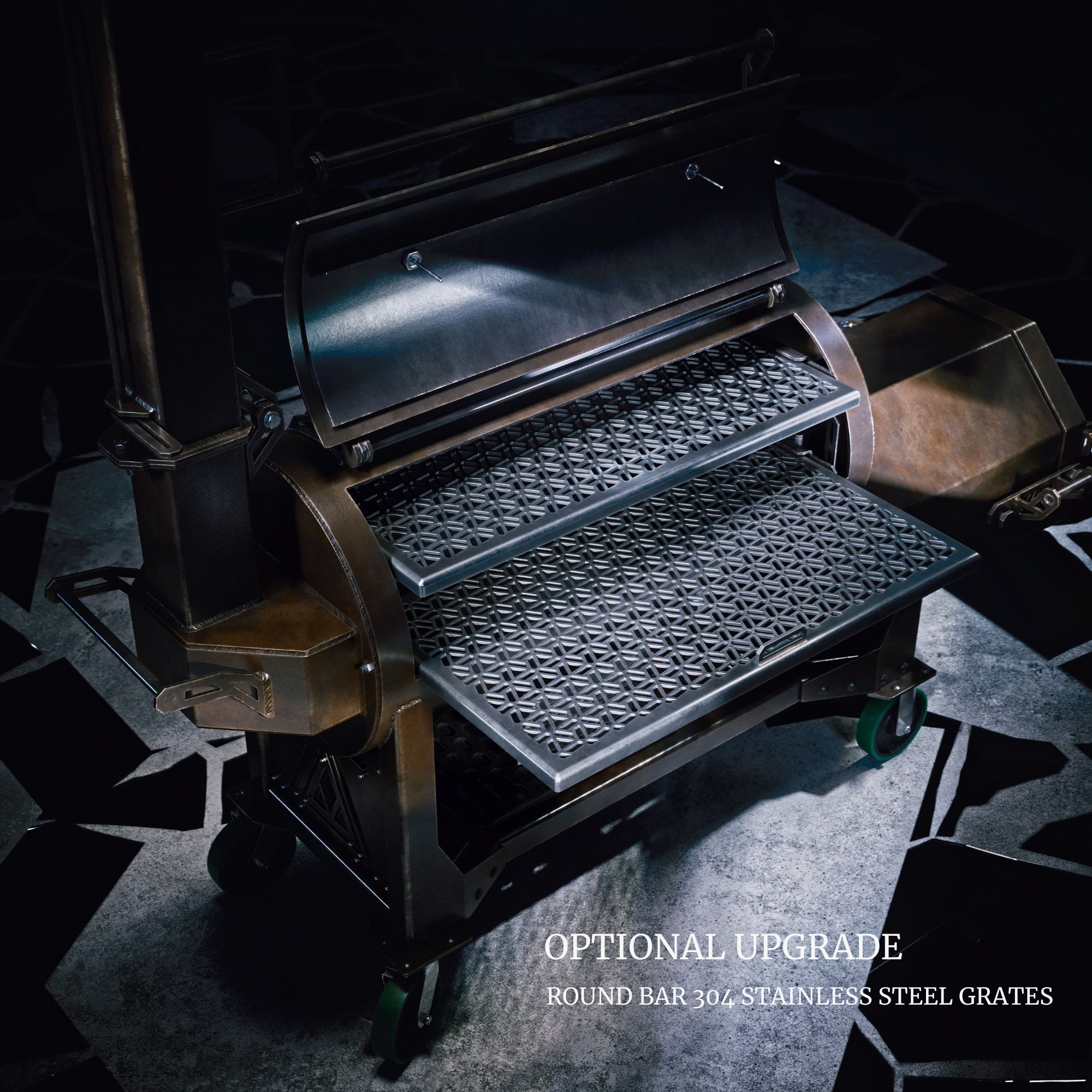

Fractal 90 heavy duty smoker comes with optional 304 stainless steel cooking grates upgrade for added durability.
Side profile of the Fractal 90 heavy gauge steel smoker showing its industrial custom offset design
Angled side view of the Fractal 90 custom offset smoker – built for serious backyard smoking.
Fractal 90 offset smoker with lid open, revealing spacious cook chamber and heavy-duty grates.
Frontal view of the Fractal 90 with lid closed and two temperature gauges– a best-in-class backyard offset smoker
Close-up of engineered airflow grates for precise heat and smoke control in this custom offset smoker.
Fractal 90 and Fractal 140 custom offset smokers side by side – industrial-grade backyard smokers built like beasts.
Two integrated temperature gauges on the Fractal 90 for real-time heat monitoring and precision smoking control
Hinged firebox door for easy access and improved heat control on this industrial offset smoker
Precision-engineered airflow system for efficient fuel use and smoke distribution in this heavy-duty smoker.
Close-up of the Fractal 90’s heavy gauge steel build and engineered design for peak performance
Steel offset smoker fire basket for superior fuel handling and airflow.
Durable cooking grates designed for high-heat cooking in the Fractal 90 backyard offset smoker
Close-up of thick steel grates built to last inside this custom offset smoker
Stainless steel shelf for added workspace and prep convenience on the Fractal 90 offset smoker
Stainless steel BBQ grate scraper upgrade for easy grate cleaning.
Fractal 90 heavy duty smoker comes with optional 304 stainless steel cooking grates upgrade for added durability.

LEVIATHAN

Fractal 90 Heavy Gauge Offset Smoker

£4,159
Tax included. Shipping calculated at checkout.
  • Free delivery - UK mainland
  • Handcrafted to order in 5-6 weeks
  • Exceptional British design & fabrication
  • Spread the cost - flexible payment options available at the checkout

Engineered for adventure and built to last, Fractal 90 is a rugged offset smoker built without compromise. Crafted from 8mm and 10mm thick steel, its heavy-duty construction ensures exceptional heat retention and durability. The innovative Dual-Flow system offers versatile airflow control, allowing you to customise your smoking experience for perfect results every time. With ceramic fibre insulation rated up to 2600°F, this large offset smoker delivers consistent temperatures while maximizing fuel efficiency. Experience true British craftsmanship – with zero shortcuts, and zero compromises.

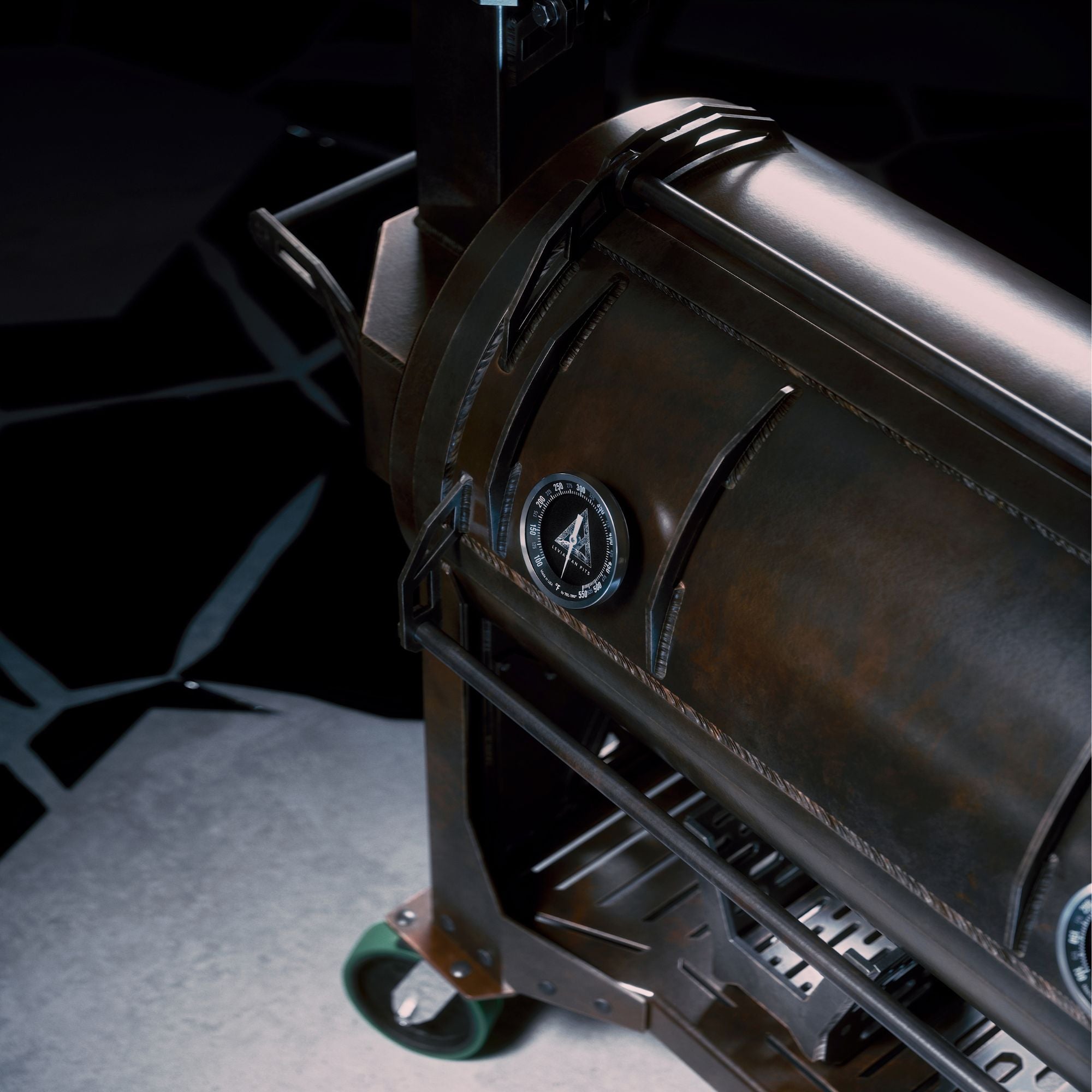

Angled side view of the Fractal 90 custom offset smoker – built for serious backyard smoking.

A NEW ERA OF OFFSET SMOKERS

ENGINEERED FOR PERFORMANCE

Meet the Fractal 90 — a custom offset smoker that packs serious punch into a more compact form. Built for enthusiasts who demand professional-grade results at home, this heavy gauge steel smoker delivers flawless consistency and flavour with every cook.

Precision-engineered to eliminate the common heat challenges of smaller pits, it’s the best backyard offset smoker for those who want pro-level performance without sacrificing space or mobility.

HEAVY-GAUGE MATERIALS

ZERO COMPROMISES

Crafted from industrial-grade 8mm and 10mm steel, the Fractal 90 is a smoker that doesn't flinch — even in extreme conditions. Its solid body ensures heat retention that cheap, mass-produced models simply can’t match.

This heavy gauge steel smoker is finished in a rust-resistant, polymerised linseed oil coating that won’t flake or peel like traditional paints. With stainless steel bolts and fixings throughout, this is a long-term investment in flavour, performance, and heritage. Over-engineered from every angle, it’s designed to outlive you.

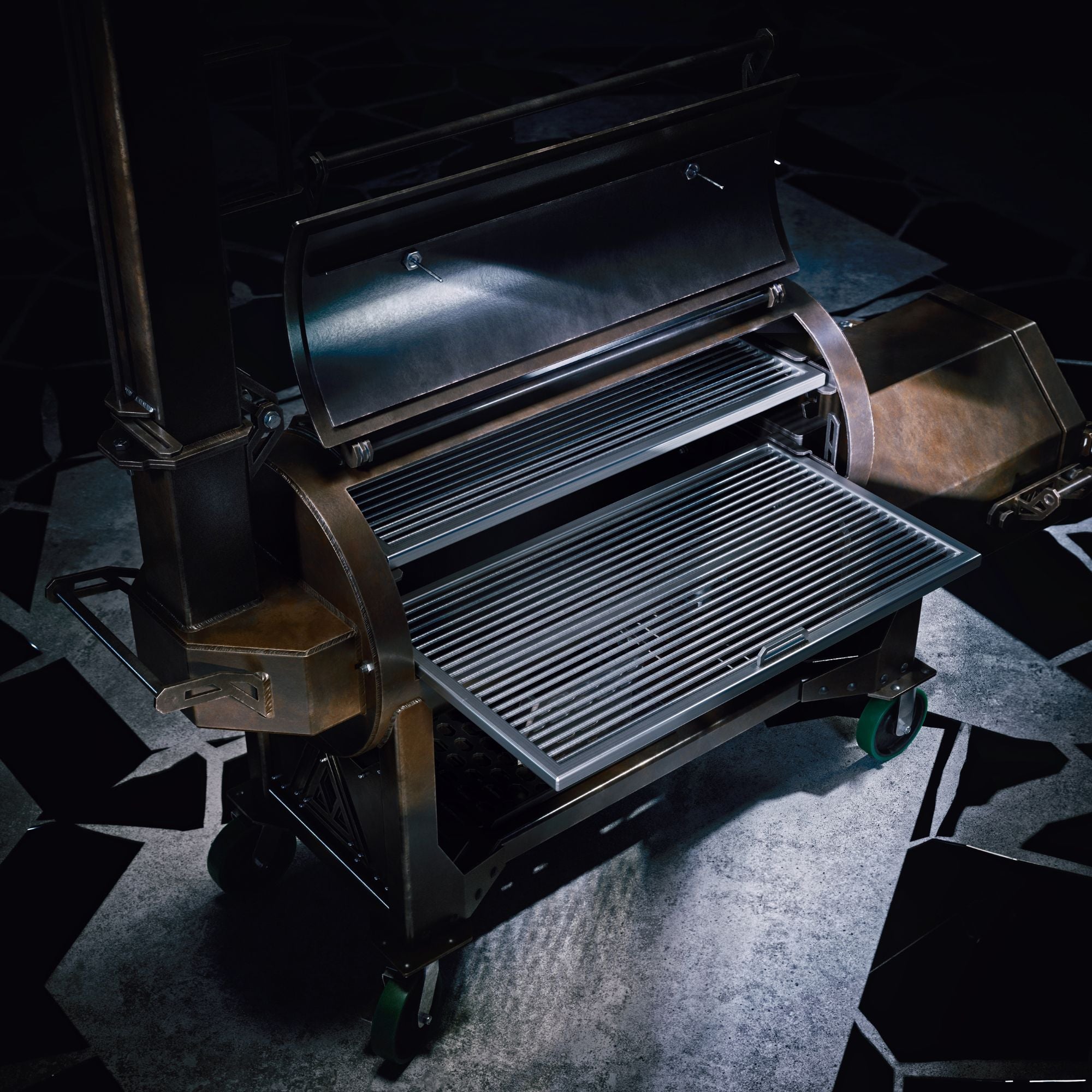

Fractal 90 offset smoker with lid open, revealing spacious cook chamber and heavy-duty grates.

MORE HEAT, LESS FUEL

CERAMIC FIBRE INSULATION

With 2 inches of ceramic fibre insulation rated up to 2600°F, the Fractal 90 holds heat inside where it belongs. The insulated firebox reduces wood consumption, speeds up ignition, and keeps exterior surfaces safer to the touch - perfect for family-friendly backyard use. Unlike non-insulated models that radiate blistering external heat and rust over time, this smoker remains stable, efficient, and cooler on the outside.

DESIGNED FOR PITMASTERS

INTELLIGENT AIRFLOW

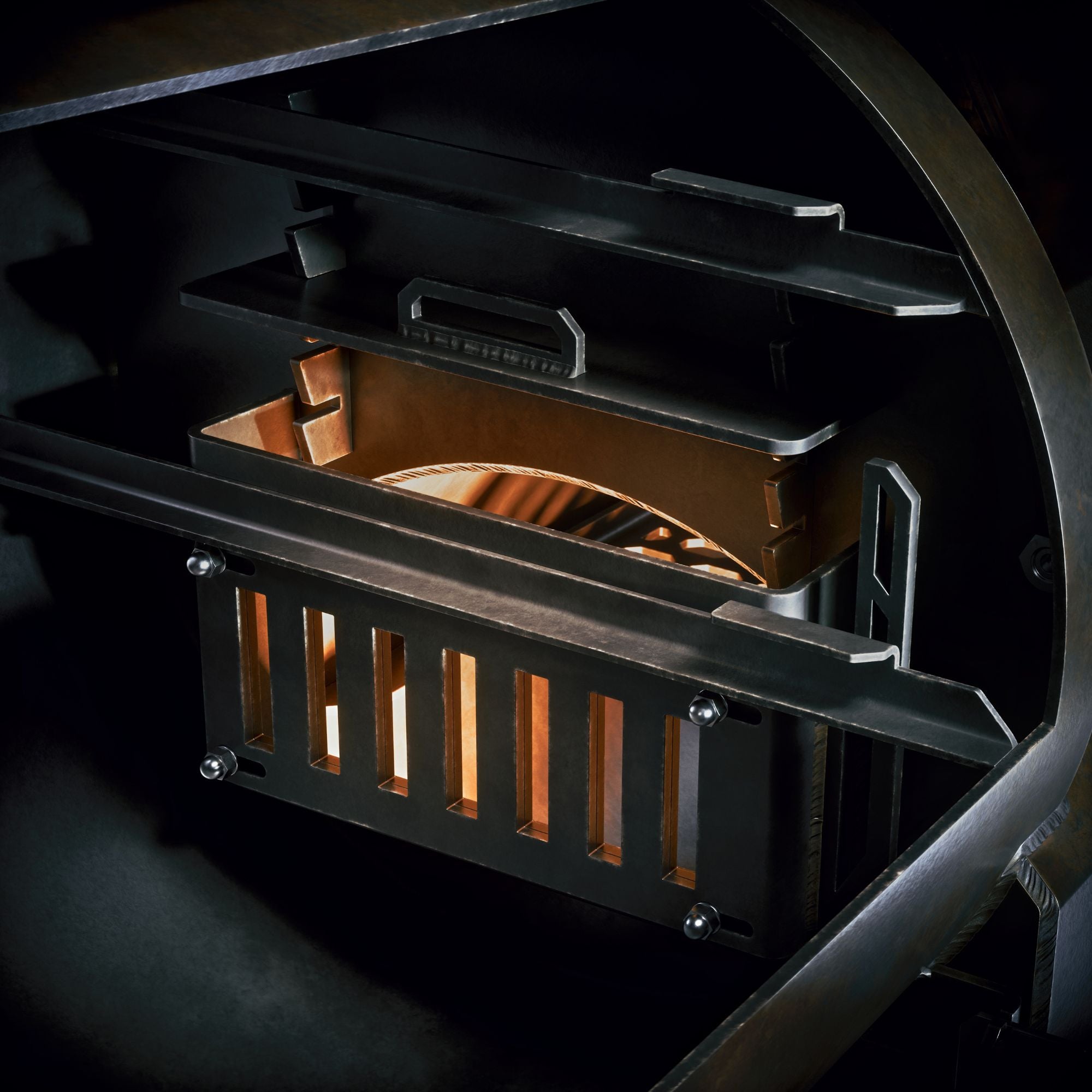

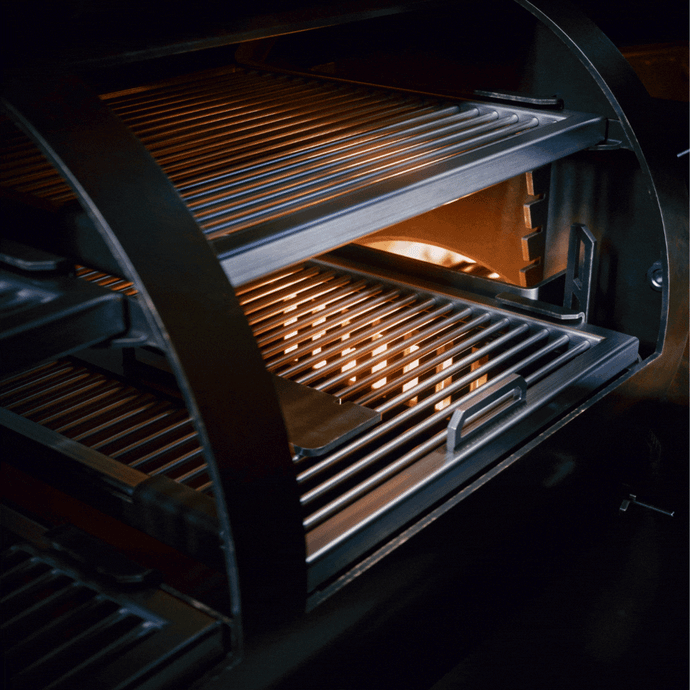

From deep smoke rings to unrivalled bark, the Fractal 90’s Dual-Flow system puts the power in your hands. Switch between reverse-flow and traditional offset airflow - or blend both - to suit your flavour profile and cut.

A common issue with smaller offsets is the reduced usable grill grate area caused by a combination of intense heat from the firebox and smaller air volume. The advanced airflow routing control makes this issue a thing of the past.

Engineered to maximise cooking surface, it delivers exceptional temperature balance and flavour control. This is smart airflow, reimagined for pitmasters for precise control without unnecessary complexity.

BUILT TO PERFORM. BUILT TO ENDURE.

HEAVY DUTY COOKING GRATES

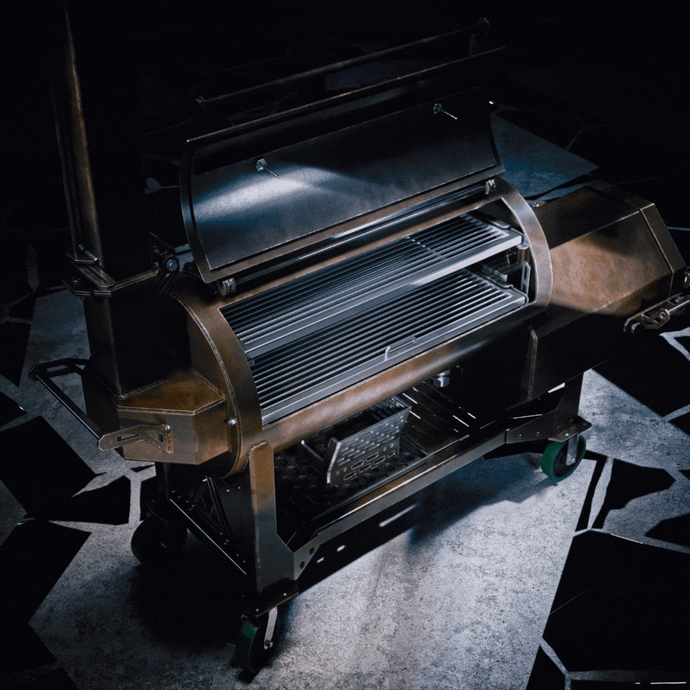

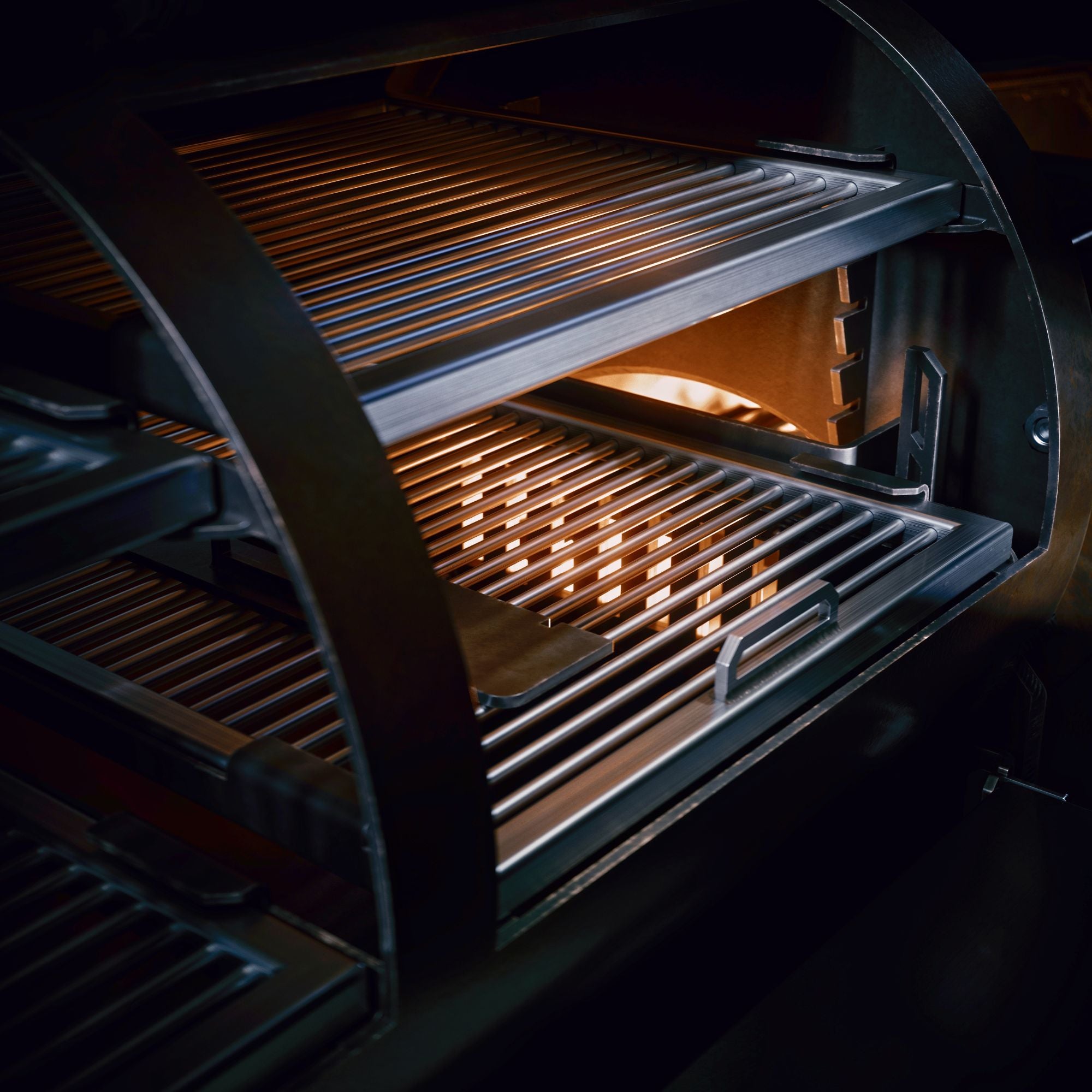

Tough 6mm carbon steel grates ensure reliable performance cook after cook, withstanding warping and providing maximum airflow. Whether you're searing, smoking, or slow-roasting, these pro-level grates handle it all without complaint and don’t degrade over time. Upgrade to 10mm stainless steel grates encased in laser-cut steel frames for even greater long-term durability and ease of maintenance.

NEXT-LEVEL HEAT CONTROL

XL FIREBOX & DUAL AIRFLOW

Heat distribution and airflow paths have been rigorously tested and optimised to the max, offering increased draw & airflow restriction – without increasing overall pit temperature.

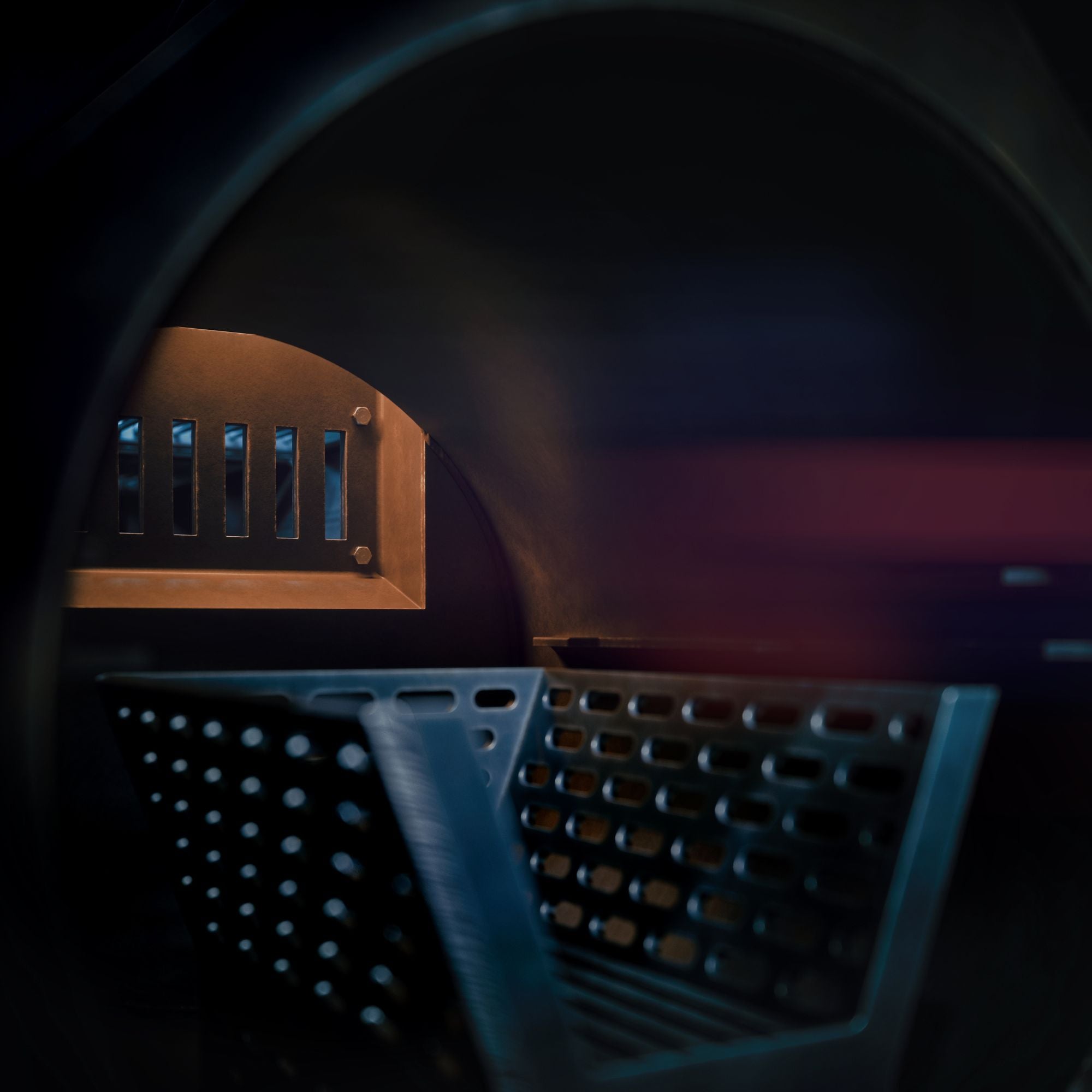

The Fractal 90 features an extra-large firebox and firebox door for easy access to the fire. Optional Materia fire basket upgrades — made from 10mm steel — make live fire management easier than ever, helping extend the firebox life while making cleanout a breeze. It’s next-level fire control, made simple.

BUILT FOR LIFE'S ADVENTURES

EASY ROLLING. ROCK-SOLID STABILITY.

Designed with urban gardens and home patios in mind, the Fractal 90 includes ultra-heavy-duty 200mm castors with cast iron cores and soft rubber treads, rated to 1500kg. Lockable front swivel wheels offer precision placement, while fixed rear castors deliver stability. For a truly custom offset smoker experience, upgrade the rear wheels to the signature Circadian spoked design with 500mm steer rear wheels.

SPECIFICATIONS

OVERVIEW

DIMENSIONS
Length: 246.5cm (118.3")
Height: 161cm/216.5cm (63.4"/85.2")
Width: 87.5cm (34.4")

WEIGHT
~670 kg (~1480 lbs)

INCLUDED AS STANDARD:
2x Calibratable Custom 5" GT500R Tel-Tru Temperature Gauges
2 x 1/2" Diameter Sealable Probe Ports
2" Stainless Steel Ball Valve For Drainage
1 x Stainless Steel Shelf
1 x Fixed Storage Shelf
COOKING CHAMBER

DIMENSIONS
Length: 124.6cm (49")
Height/Width: 61cm (24")

VOLUME
341L (90 US gallons)

LOWER GRATE DIMENSIONS
Length: 105.2cm (41.4")
Width: 58.7cm (23.1")

TOP GRATE DIMENSIONS
Length: 108.5cm (42.7")
Width: 45cm (17.7")

COMBINED COOKING SURFACE AREA
11,050.7 Sq. cm (1713 Sq. Inches)
FIREBOX

DIMENSIONS
Length: 80.5cm (31.7")
Height/Width: 65cm (25.6")

VOLUME
123.5L (32.6 US gallons)

SEARING GRATE DIMENSIONS
Length: 57.1cm (22.5")
Width: 44.7cm (17.6")
CHIMNEY

OVERALL HEIGHT
115.6cm (45.5")

FEATURES
Foldable
​Adjustable Damper
DELIVERY & RETURNS

Free Delivery

We offer FREE delivery on all orders over £150 to UK Mainland. For orders under £150 there is a delivery charge of £6.95. Please note, orders with multiple products may be shipped separately.

Returns

You can return your item for any reason within 14 days of delivery.

Click to view our full Delivery Information & our Returns Policy.

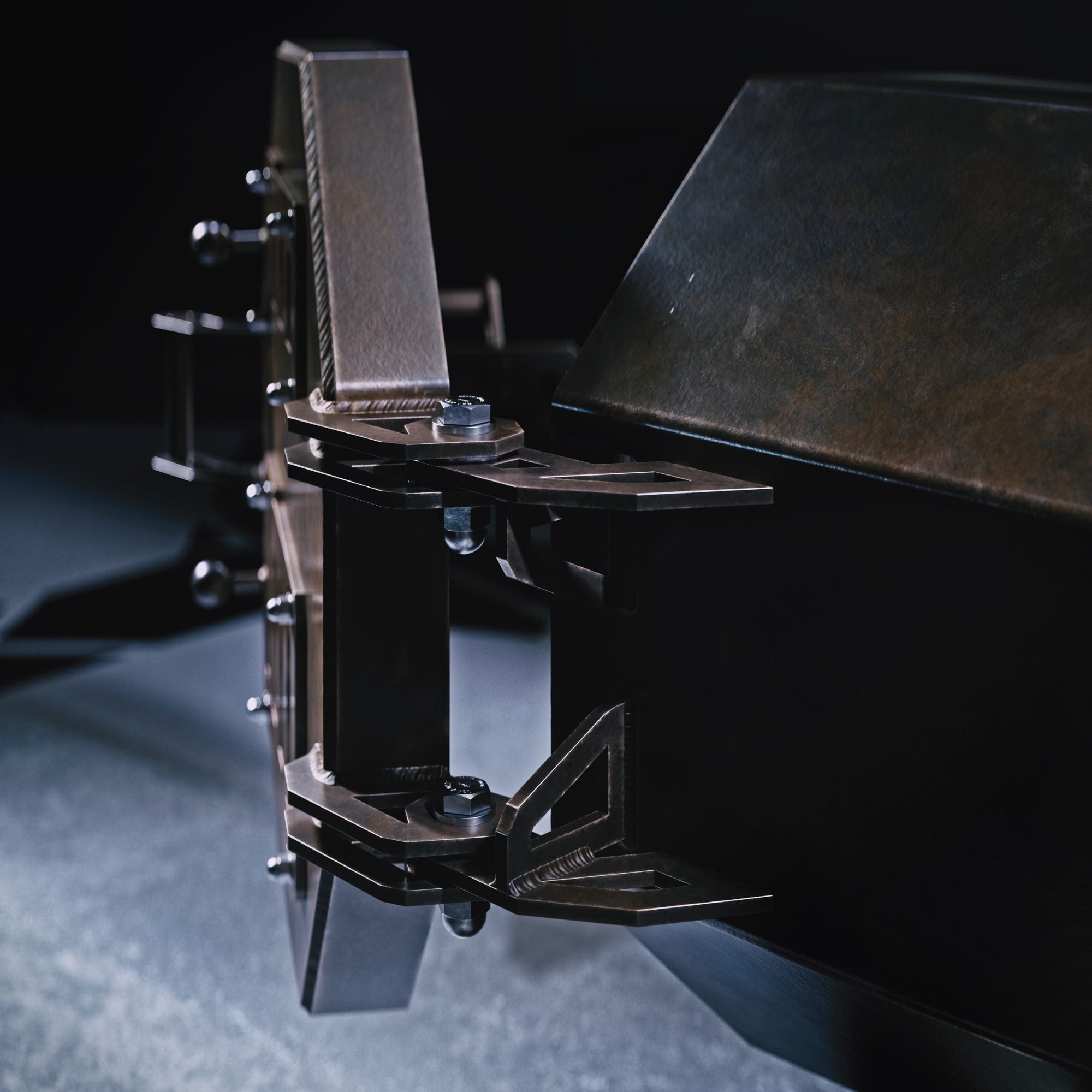

Hinged firebox door for easy access and improved heat control on this industrial offset smoker
Optional Pit Upgrades

Available Upgrades

We offer several upgrades to provide the best offset barrel smoker experience, designed to last a lifetime. Choose from the following options:

  • Heavy-Duty 10mm Round Bar 304 Stainless Steel Cooking Grates: £249.99
  • Off-Road Chassis with High-Spec ATV Wheels: £549.99
  • Stainless Steel Main Shelf: £139.99
  • Small Materia Fire Basket: £164.99
  • Heavy Duty Grill Grate Scraper: £64.99
  • Firebox Searing Grate: £64.99​
  • Heavyweight Waterproof Cover (610gsm black heat welded PVC): £239.99

Contact us after purchasing to add upgrades to your order.

Contact Us

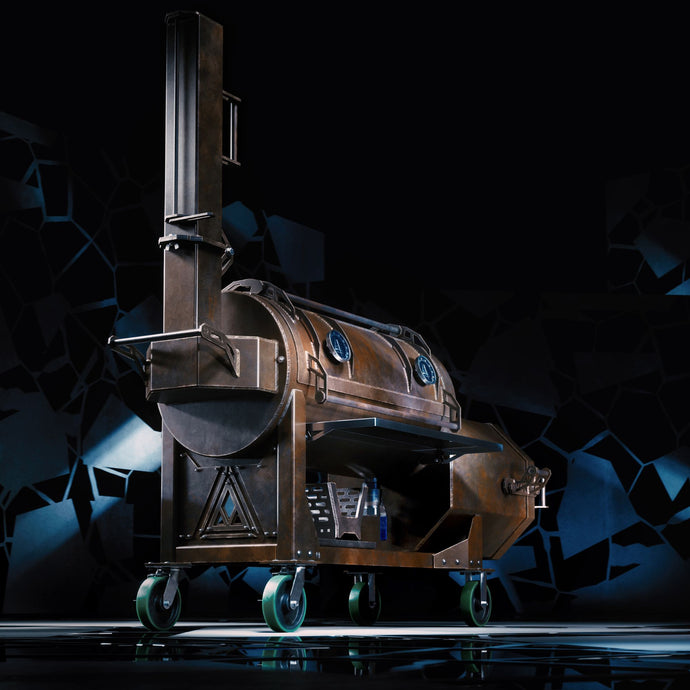

Side profile of the Fractal 90 heavy gauge steel smoker showing its industrial custom offset design

Customise Your Pit

All pits are expertly fabricated to order here in the UK. They can therefore be customised according to your needs. Please get in touch below to discuss any customisation needs.

Image features our standard Fractal 90 model

Contact To Customise View Fractal 90
